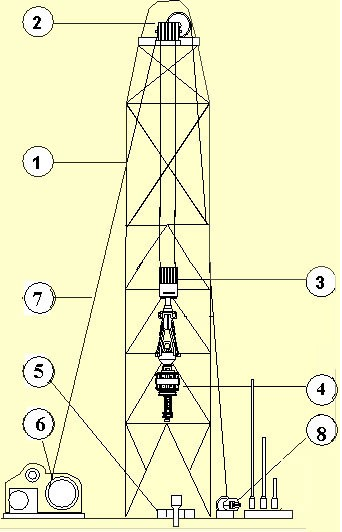

HOISTING & ROTATION SYSTEM
1. MAST & SUBSTRUCTURE
2. CROWN BLOCK
3. TRAVELLING BLOCK
4. TOP DRIVE
5. ROTARY TABLE
6. DRAWWORKS
7. DRILLING LINE
8. DEADLINE ANCHOR
